NZXT H5 Elite Compact ATX Mid-Tower PC Gaming Case White

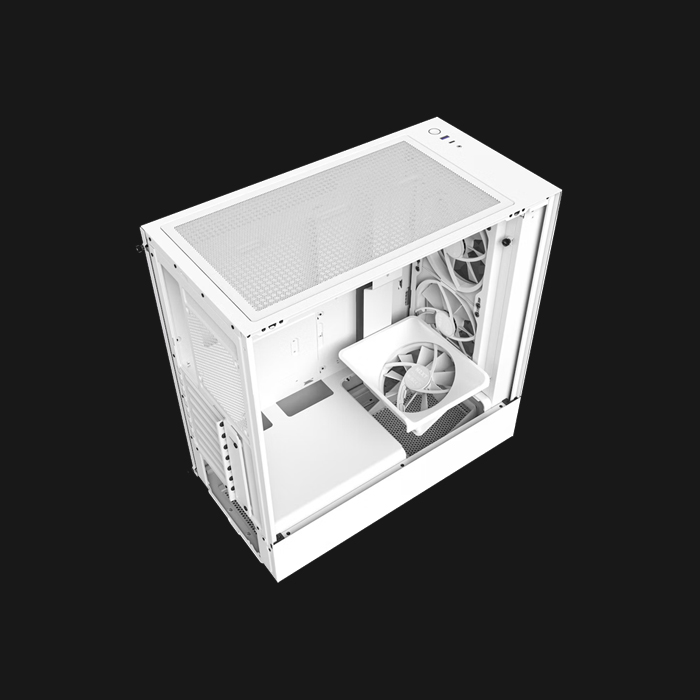

• Angled GPU Cooling: Pre-installed bottom fan

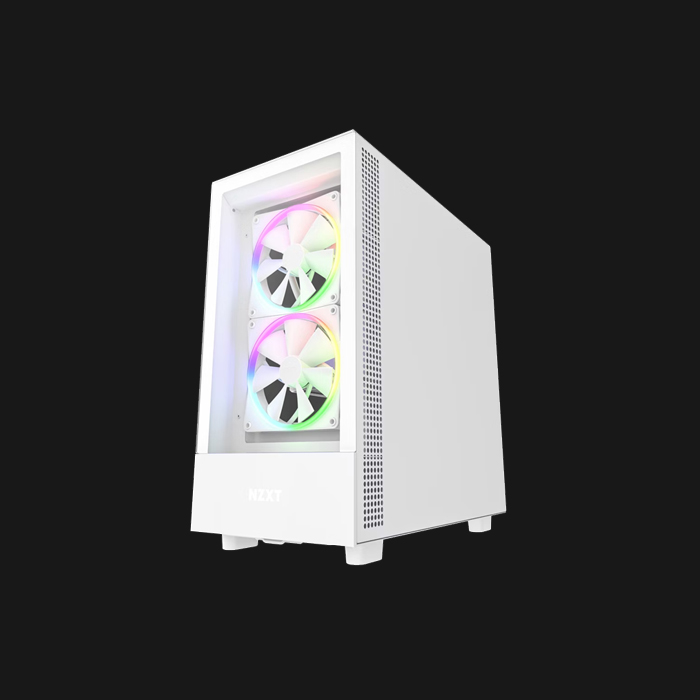

• Tempered Glass Front: Built-in RGB controller
• Optimal Ventilation: Perforated top panel

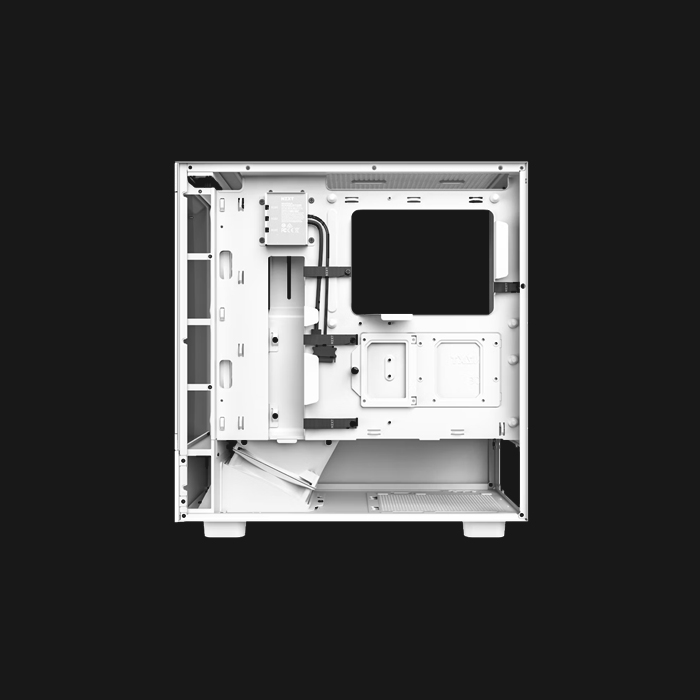

• Cable Management: Wide channels, hooks, & straps

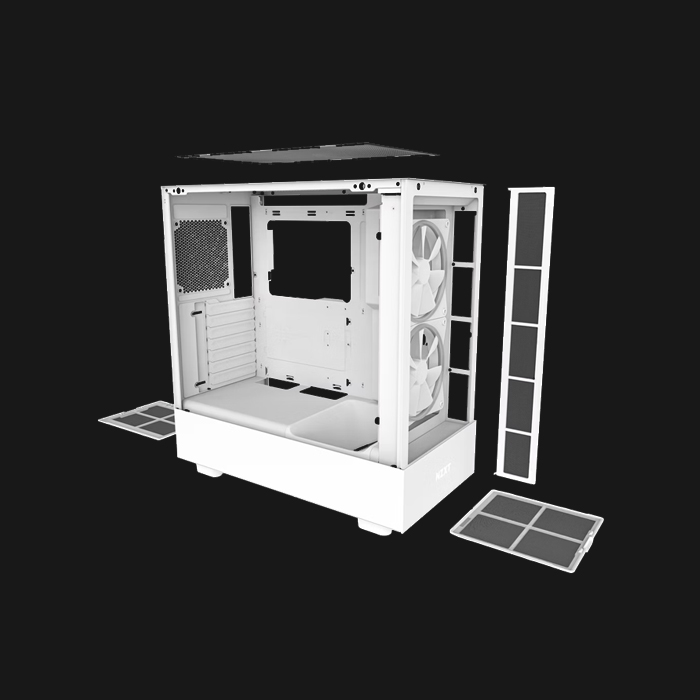

• Easy Access: Tool-less front & side panels
• Front Panel: Supports 2x140mm fans or 280mm radiator
• Top Panel: Supports up to 2x120mm fans or 240mm radiator
• Included Fans: 2x F140 RGB, 1x F120Q (Case Version)

47,000.00

Add to wishlist Adding to wishlist Added to wishlist

Tech Specs

Key Specs

Motherboard Support:Mini-ITX, Micro-ATX, ATX

Enclosure Type:Mid-Tower

Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

Dimensions

Height:464 mm (With Feet)

Width:227 mm

Depth:446 mm

Weight:8.1 kg

Compatibility & Clearance

Max CPU Cooler Clearance:Up to 165mm

Max GPU Clearance:Up to 365mm

Front Radiator Clearance:45mm

Cable Management:Up to 23mm

Front I/O Ports

USB 3.2 Gen 1 Type-A:1

USB 3.2 Gen 2 Type-C:1

Headset Audio Jack:1

Included Accessories

Installation screws:1

Cable ties:10

RGB Lighting Controller:NZXT RGB Connector: 3 (Support up to 120 LEDs)

Expansion Slots

Standard:7

Drive Bays

2.5″:1+1

3.5″:1

Fan Support

Front:2 x F Series RGB 140mm (Case Version) included

Top:2 x 120mm

Rear:1 x 120mm

Bottom:1 x F Series Quiet 120mm (Case Version) included

Filters:All Air Intakes

Radiator Support

Front:Up to 280mm

Top:Up to 240mm

Rear:Up to 120mm

Fan Specs

Model:F140 RGB Fan (Case Version)

Speed:500 – 1800 RPM

Airflow:24.85 – 89.48 CFM

Static Pressure:0.94 – 3.39 mm-H2O

Noise:20 – 32.5 dBA

Fan Connector:3-pin

Fan Specs

Model:F120Q Airflow Fan (Case Version)

Speed:1200 ± 240 RPM

Airflow:62.18 CFM

Static Pressure:1.05 mm-H2O

Noise:25.1 dBA

Fan Connector:3-pin

General

Warranty:2 Years

Model Number:CC-H51EW-01 (White) / CC-H51EB-01 (Black)

UPC:810074842457 (White) / 810074842440 (Black)

EAN:5056547202372 (White) / 5056547202365 (Black)
